EMB-Fem2GW Miner-I

    799.00 € 799.00 € 799.0 EUR

    799.00 €

    Option not available

    Select a valid country.


    Current batch: first batch
    Delivery Start: 01/06/2022
    Remaining quantity: 1999

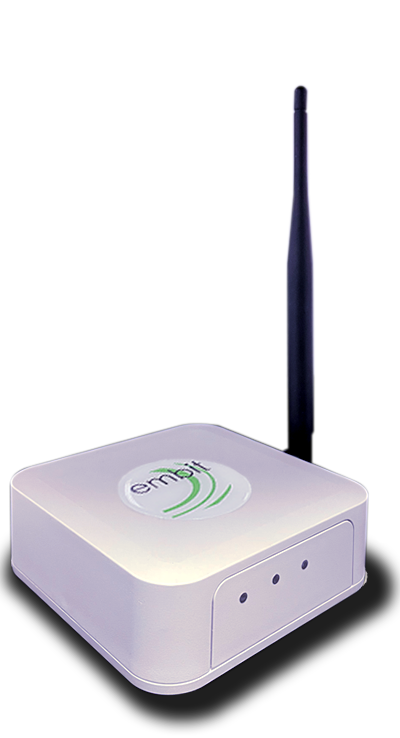

    EMB-Fem2GW Miner-I is the indoor version of the Embit Helium Miner. It provides high performance LoRaWANTM connectivity compatible with Helium LongFiTM protocol. Built-in Bluetooth and Wifi connectivity enable easy-to-use onboarding and hotspot monitoring.


    Start date End date

    01/06/2022

    Current batch

    31/07/2022

    01/08/2022

    Second batch

    30/09/2022

    01/11/2022

    Third batch

    31/12/2022

    TECHNICAL SPECIFICATION

    Outdoor

    No

    Processor

    Broadcom BCM2711 quad-core Cortex® A72 (ARM v8) 64-bit SoC @ 1.5GHz

    RAM Memory

    2 GB RAM LPDDR4-3200 SDRAM

    Flash Memory

    32 GB eMMC

    LAN Connection

    Ethernet RJ45 1000

    LoRaWAN® connectivity

    EMB-LR1302/3-mPCIe (EU 863-870 MHz) – 8 LoRaWAN® Channels

    Backhaul connectivity

    Wi-Fi IEEE 802.11 b/g/n/ac

    Bluetooth

    Yes (Bluetooth 5.0)

    OS

    RaspiOS 64 bit

    Crypto Unit

    ECC608A

    Power Supply

    POE IEEE 802.3af or +12 VDC

    Antenna

    SMA Connector

    DIMENSIONS

    Length

    150mm

    Width

    150mm

    Height

    40mm
